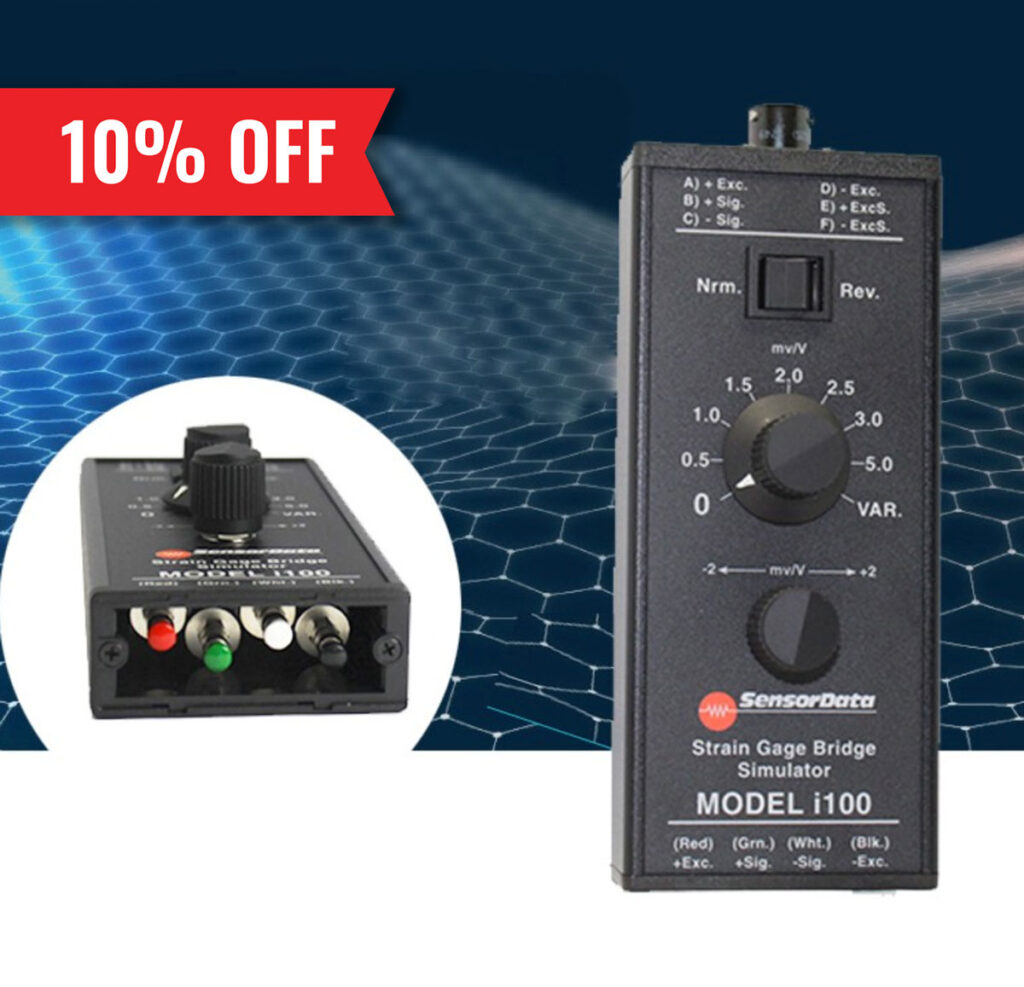

String Gauge Bridge Simulator:
Model i100

Our popular i100 hand held simulator generates precise mV/V signals to help develop, “troubleshoot,” and calibrate strain gage signal conditioners, instruments, signal processors, and data loggers.
Accuracy is ± 0.03%, temperature effects are 6 ppm/F, and zero balance is 0.0004 mV/V. Resistance of the i100 simulator is equivalent to a 350-ohm bridge. The i100 has 8 switch selectable output steps. Also, a Vernier knob is provided to allow the user to continuously adjust the output from –2 to + 2 mV/V. A convenient switch provides true reverse polarity. Connection to the i100 is made through either a PT style connector or 4 color-coded spring-loaded test clips. All critical internal contacts are gold plated. The i100 is compatible with AC carrier or DC strain gage signal conditioner electronics.

  • Completely passive
  • 8 output steps from 0 to 5 mV/V and variable adjustment from 0 to 2 mV/V
  • Pocket size – 2 3/4 x 1 7/8 x 6 3/4 inches
  • Accuracy ± 0.03%
  • Temperature coefficient 6 ppm/F
  • True reverse polarity switch
  • Compatible with AC carrier & DC strain gage signal conditioner electronics
  • Anodized aluminum case with baked matte black finish

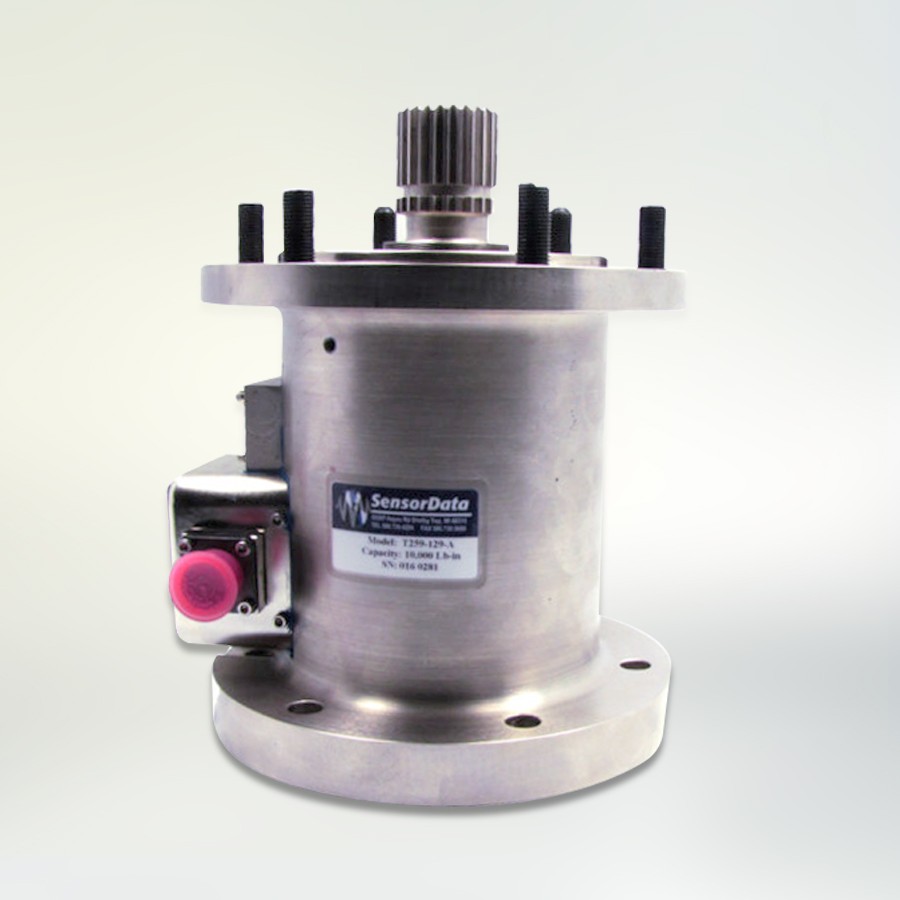

Mil Spec Dual Range Torque Sensor

The T259 rotary transformer torque sensor with a spline drive and flanged housing meets the mounting requirements of Army-Navy standards AND 20002 and AND 10262.

  • Meets AND 20002 & 10262 requirements
  • High stiffness, low inertia, and high bending moment capability
  • On-board shunt calibration circuit
  • Rated speed 20,000 rpm
  • Internal zero velocity speed sensor
  • (optional)
  • SAE 4340 alloy steel construction with satin nickel finish

CALL 586.739.4254 TO ORDER

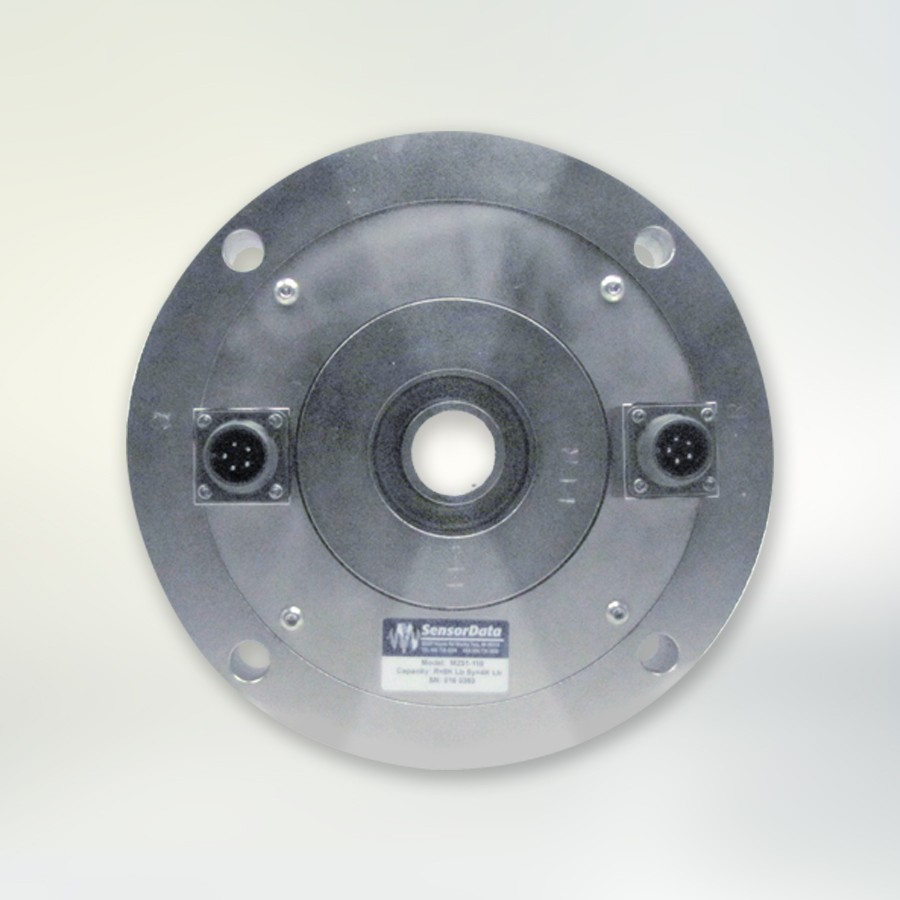

Fatigue Rated X-Y Force Sensor

  • Measures X & Y forces
  • 2 mV/V +/- 0.25% each axis
  • Cross talk <0.5%
  • Fatigue rated
  • Custom designs & capacities available
  • SAE 4340 alloy steel construction with satin nickel finish
  • Supplied with mating connectors

CALL 586.739.4254 TO ORDER

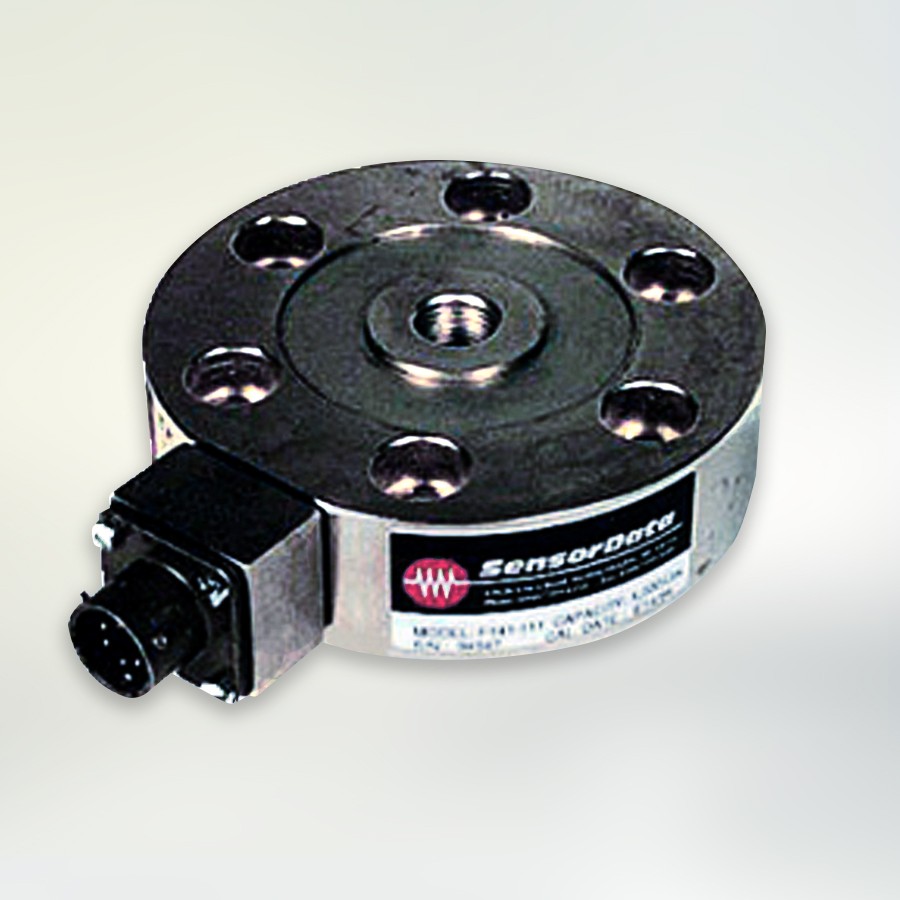

Fatigue Rated Low Profile
Universal Shear Web Load Cell

  • Fully fatigue rated shear web design
  • Small diameter
  • 0.15% Accuracy
  • Deflection less than 0.002 inch
  • Tension plate & load button (optional)
  • SAE 4340 alloy steel construction with satin nickel finish
  • Supplied with mating connector
